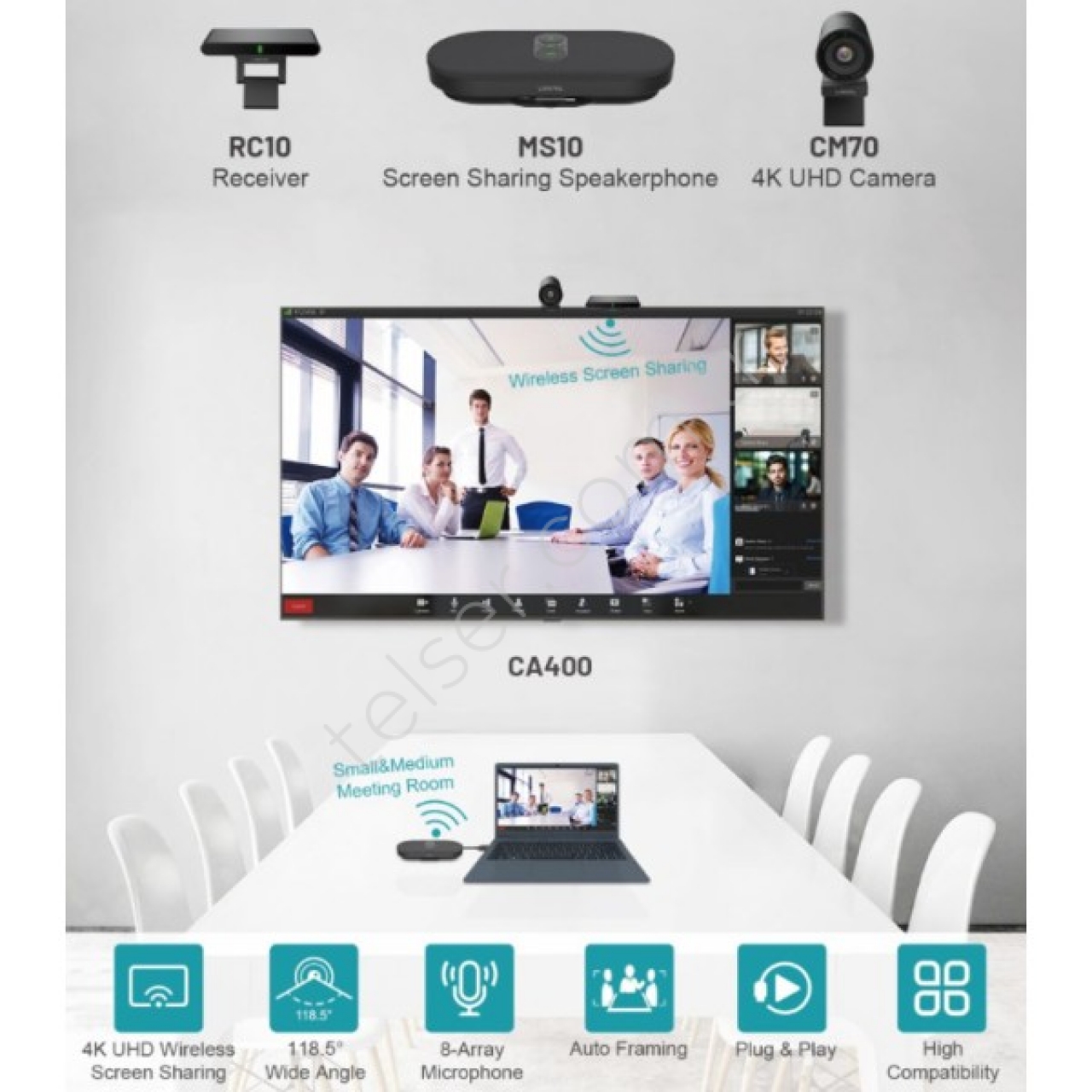

Kablosuz 4K Video Konferans Cihazı
LINKVIL'in son teknoloji 4K kamerası, ses geliştirilmiş hoparlörleri/mikrofonları ve
tek tıklamayla ekran paylaşımı ile kablosuz bir çözüm
• Dağıtımı kolay KABLOSUZ toplantı odası - Karmaşık sistem entegrasyonu gerekmez
• Tak ve çalıştır - Yazılım kurulumu gerekmez
• Anında toplantı hazırlığı - Bir USB-C hoparlör,
kablosuz ekran paylaşımı ve kamerayı etkinleştirir

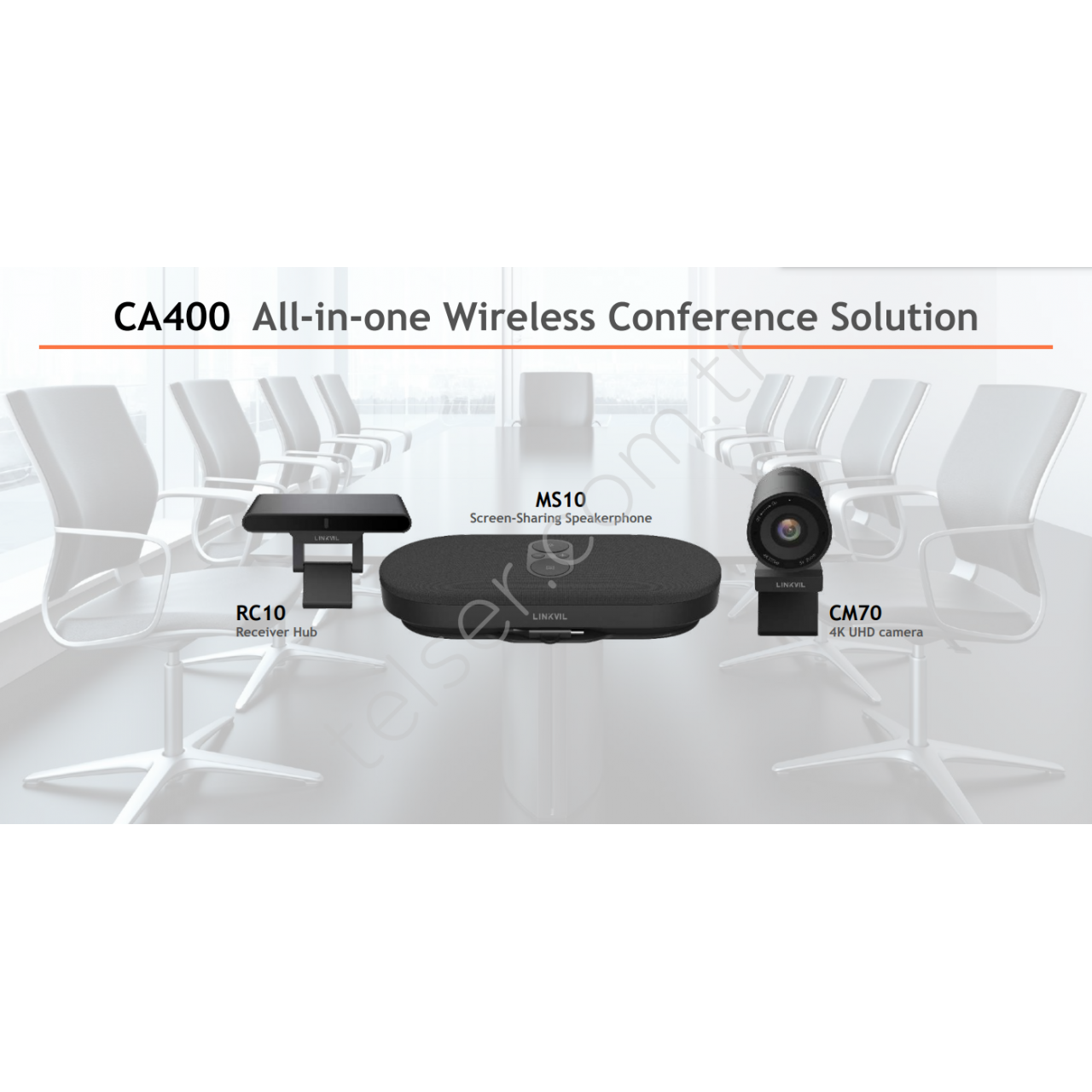

Linkvil CA400 Özellikleri
MS10 Screen-share Speakerphone
• Max. Screen Share Resolution: 3840*2160 @30fps
• Microphone - 8 MEMS microphones for 360° pickup - Pick-up Range: 4-meter - Signal to Noise Ratio (SNR): 64.5dB(A) - Sensitivity: -26dBFS@1kHz (0dB=1V/Pa) - Acoustic Overload Point: 119dB SPL <10%@1kHz - Frequency: 20Hz-10KHz - Full-duplex - Beamforming - Acoustic Echo Cancellation (AEC) - Adjustive Noise Suppression (ANS) - Automatic Gain control (AGC) - Reverberation Reduction
• Speakerphone - Speaker/Rated power: 4Ω/3W - Speaker Size: 50mm - Sensitivity: 1KHz 85 dB ± 3dB @1m - Signal to Noise Ratio (SNR): 50dB - Frequency Range: 200Hz- 10KHz MAX 5% - Max. Sound Pressure Level: 85dB SPL@1m @3W - Background Noise: <30dB - Total harmonic Distortion: 200Hz-10KHz MAX 5%
RC10 Receiver Hub
• Camera Streaming - Max. Output Resolution: 1920x1080 @30fps - Support Camera Type: UVC camera - Format Supported: H.264
• Physical Character: magnetic attraction
CM70 UHD Camera
• USB Camera - Sensor Type: IMX 415 (1/2.8") 3840*2160 - Output: MJPEG/ H264/ H265 /YUV / NV12 30P (YUV and NV12 don ‘t support 4K and 2K) 3840*2160/2560*1440/1920*1080/1280*720/1024 *576/960*540/800*448/640*360/320*180/960*72 0/800*600/640*480/480*270/352*288/320*240 - FOV: DFOV 118.5°/HFOV 109.9°/VFOV 74.6° - Auto-Framing: Auto - F/No: F2.5 - Zooming: 5x digital zoom - Maximum Resolution: USB3.0: 3840*2160 30fps/ USB2.0: 1920*1080 30fps - Security Protection: manual privacy cover
• USB Microphone - Type: 2 electret microphones - Pick-up Range: 4-meter - Signal to Noise Ratio: 94dB SPL@ 1KHz 65dB(A) - Sensitivity: 94dB SPL@ 1KHz - 30±2dB FS - Full-duplex - Adjustive Noise Suppression (ANS) - Automatic Gain Control (AGC)
• Physical Character: magnetic attraction
Connectivity
• Protocol: 802.11 a/n/ac
• Wireless Transmission Protocol: Quick UDP
• Transmission Distance: up to 10-meter
• Frequency bands & max. transmitted power: - Wi-Fi 5GHz, Max 20dBm (Support for selecting corresponding 5G channels based on the country.)
I/O Interface • USB Camera: Type C x1
• Speakerphone: Type C PD + DP ALT
• Receiver Hub: HDMI x1, Type C PD, USB A 3.0 x1 Physical Specifications
• Dimensions - USB Camera: 80*75*53mm/3.15*2.95*2.09" - Speakerphone: 180*81*32mm/7.09*3.19*1.26" - Receiver Hub: 102*45*20mm/4.02*1.77*0.79" - Gift Box Dimension: 233*188*110mm - Outer CTN Dimension: 498*408*258mm (8PCS)
• Weight - USB Camera: 210g/7.4oz - Speakerphone: 385g/13.58oz - Receiver Hub: 70g/247oz - Carton Net Weight: 12.56 kg - Carton Gross Weight: 13.78 kg
• Temperature and humidity - Working temperature: 0°C-40°C - Working humidity: 10%—90%RH
Package Contents • USB Camera: CM70 • Speakerphone: MS10 • Receiver Hub: RC10 • Remote Control • 20cm USB-C to HDMI & USB-A/C Adapter: H2C, 1.5m HDMI Cable, 40cm USB Extension Cable, 1.8m Type C-A USB Cable • Power Adapter: 5V/2A • Quick Installation Guide
